Hantek HT25 Automatic Ignition Probe Cable For Phoenix Scope
Description

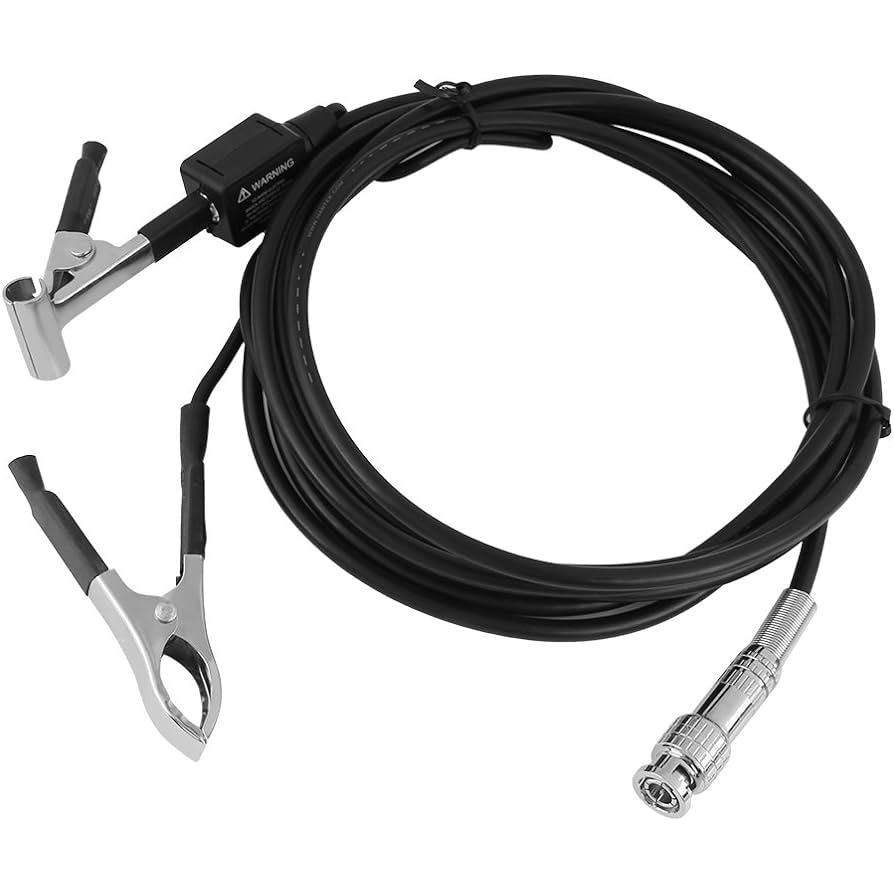

This ignition pick-up is suitable for secondary-distributor ignition analysis, secondary-simultaneous ignition analysis, and secondary-direct ignition analysis. It features a BNC connector for connecting to CH1/CH2/CH3/CH4, a crocodile clip for grounding, and a high-voltage clip for connecting high-voltage lines. It also has an attenuator equipped for high-pressure attenuation to prevent the Phoenix Scope from being impacted.
Please note that the high voltage clip should be clamped on the insulated lead (COP Extension Cord) instead of on the spark plug to prevent breakdown and electric shock. Additionally, it is recommended to keep a distance of 2 inches from other high-voltage lines to avoid interference.
Note
- Test clips shall not directly clip in spark plug, should be caught in the connection of the spark plugs of insulation wire, in order to prevent the breakdown and causing a shock.
- To distance other high-voltage at least 2 inches apart, lest produce interference.
- HT25 leading line length 2.5 meters, the decay of up to 10,000:1.
