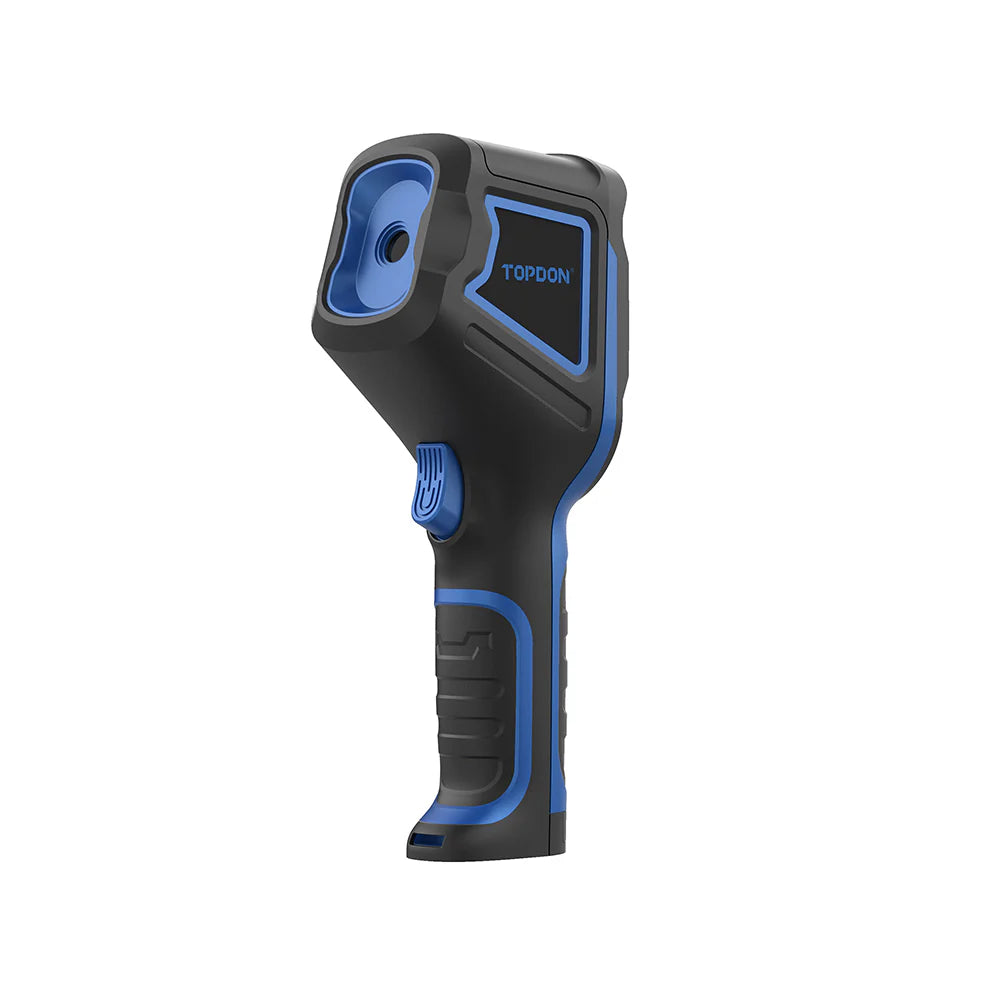

TOPDON TC004 Mini Handheld Thermal Imaging Camera

In stock
Regular price $349.95 NZD inc. GST
Finance Options Available Interest Free From 12 -36 Months T&C'S Apply
Free Shipping NZ Wide Orders Over $129
Long term payment plans available logo-NZD 12 months intrest free online & up to 36 months instore.

Introducing the TC004 Mini, a compact, entry-level handheld thermal camera packed with rich features. With advanced TISR image enhancement technology, it upscales resolution from 128x128 to 240x240, ensuring crisp, detailed thermal images. Lightweight and user-friendly, it allows even beginners to quickly and accurately identify problems with ease. Ideal for diagnosing HVAC issues, overheating components, electrical faults, or leaks.

Features

More Details, Better Results

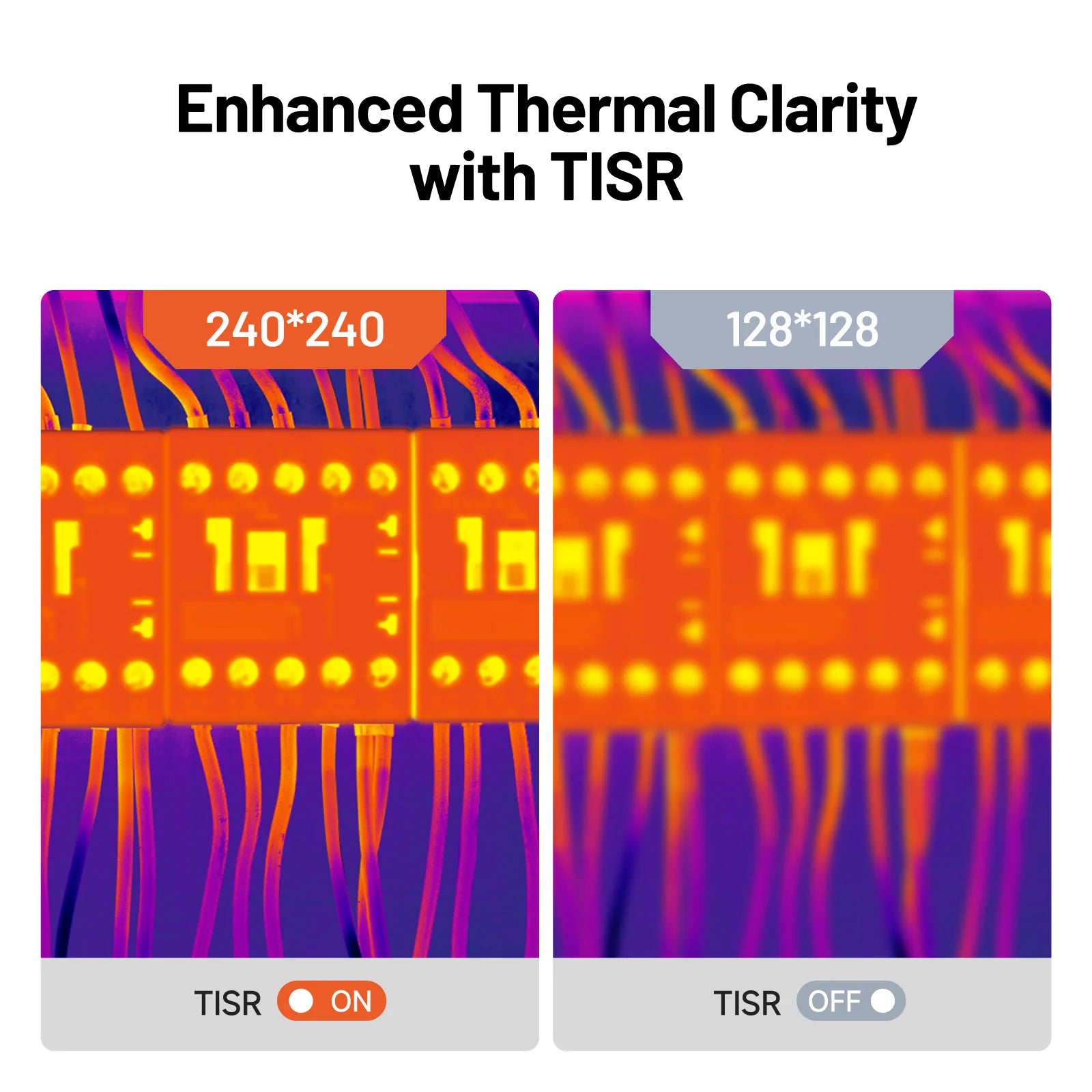

  • The TISR technology takes you from 128x128 to a crisp 240x240 resolution. Combine that with a fluid 25Hz refresh rate, and you'll catch every detail with ease, making your thermal tasks faster and simpler.

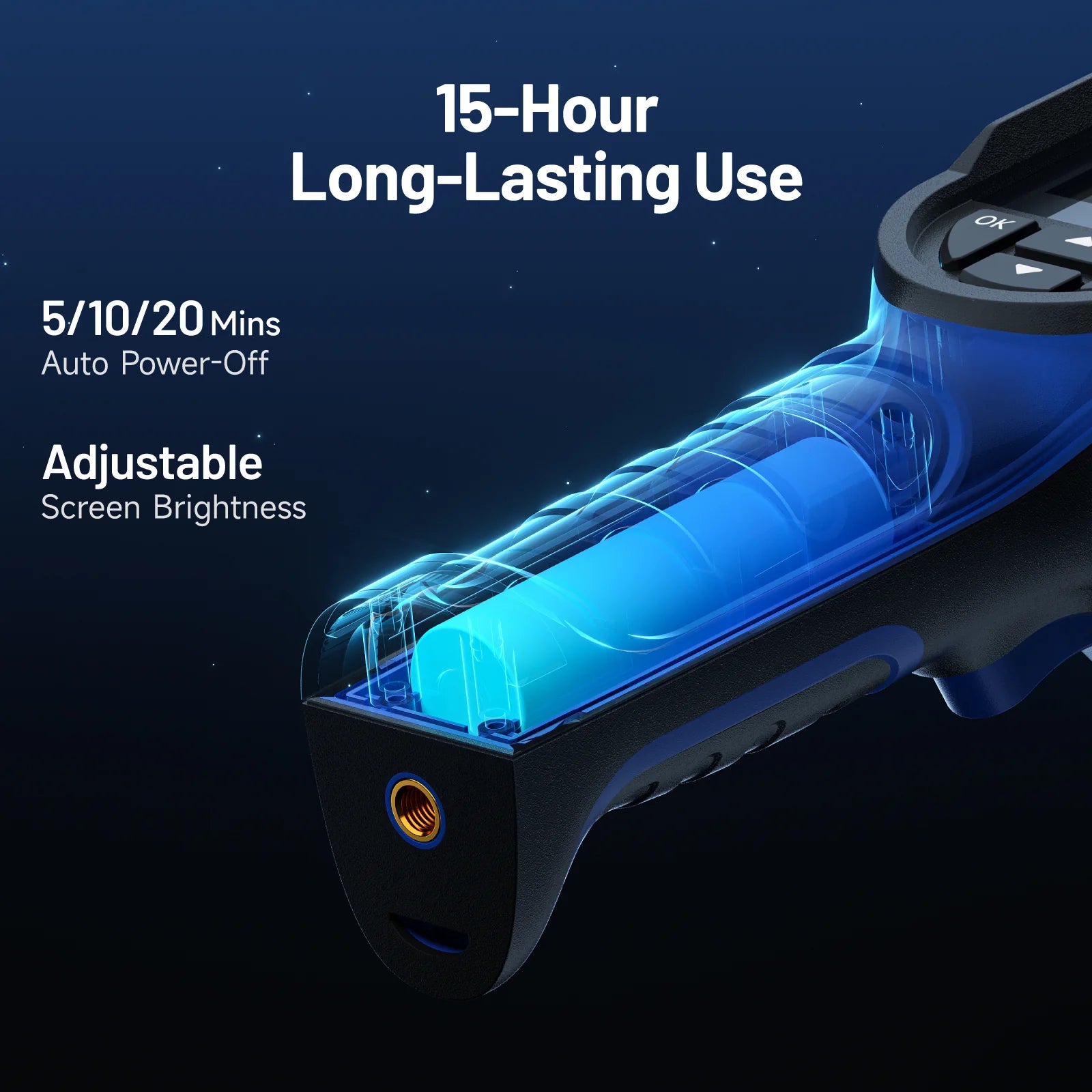

All-Day Power

  • The built-in 2,900mAh battery, combined with customizable auto-off options (5, 10, or 20 minutes), provides up to 15 hours of runtime, allowing you to handle more tasks without frequent recharging.

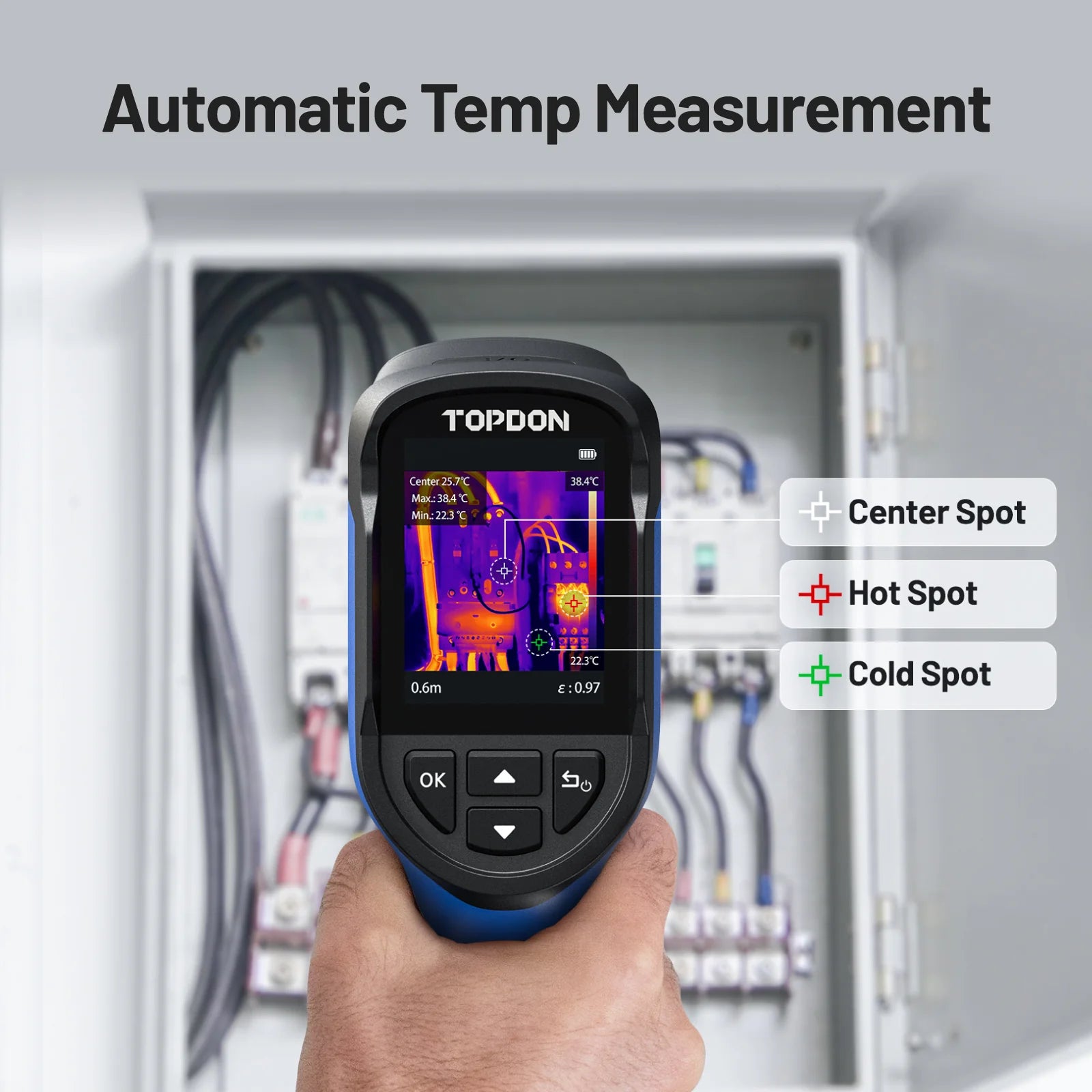

Auto Detection with Smart Alerts

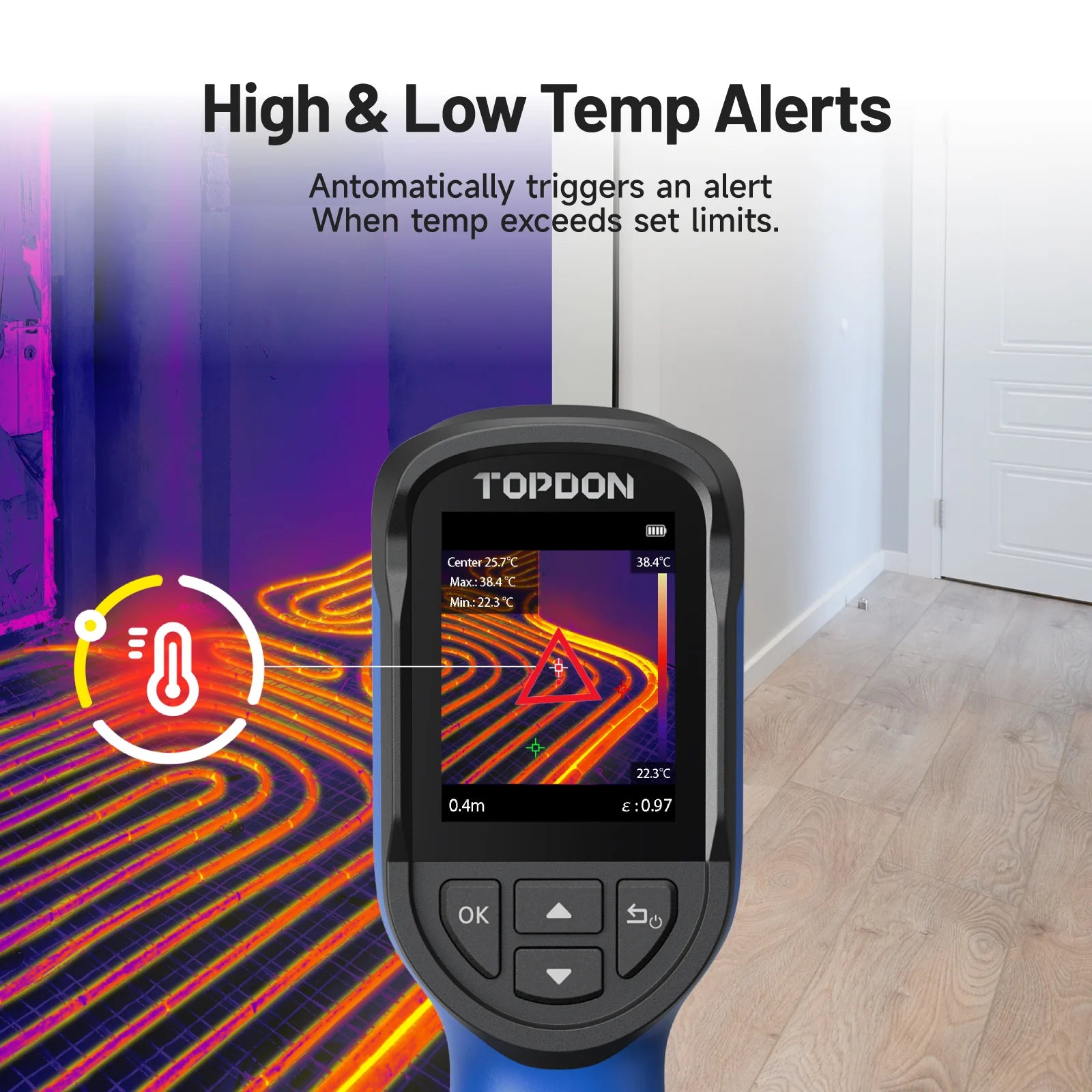

  • Effortlessly identify anomalies with automatic detection of max, min, and center temperature spots. When temperatures exceed your preset limits, the device triggers a visual warning and captures a photo, making it easier to locate and document issues quickly.

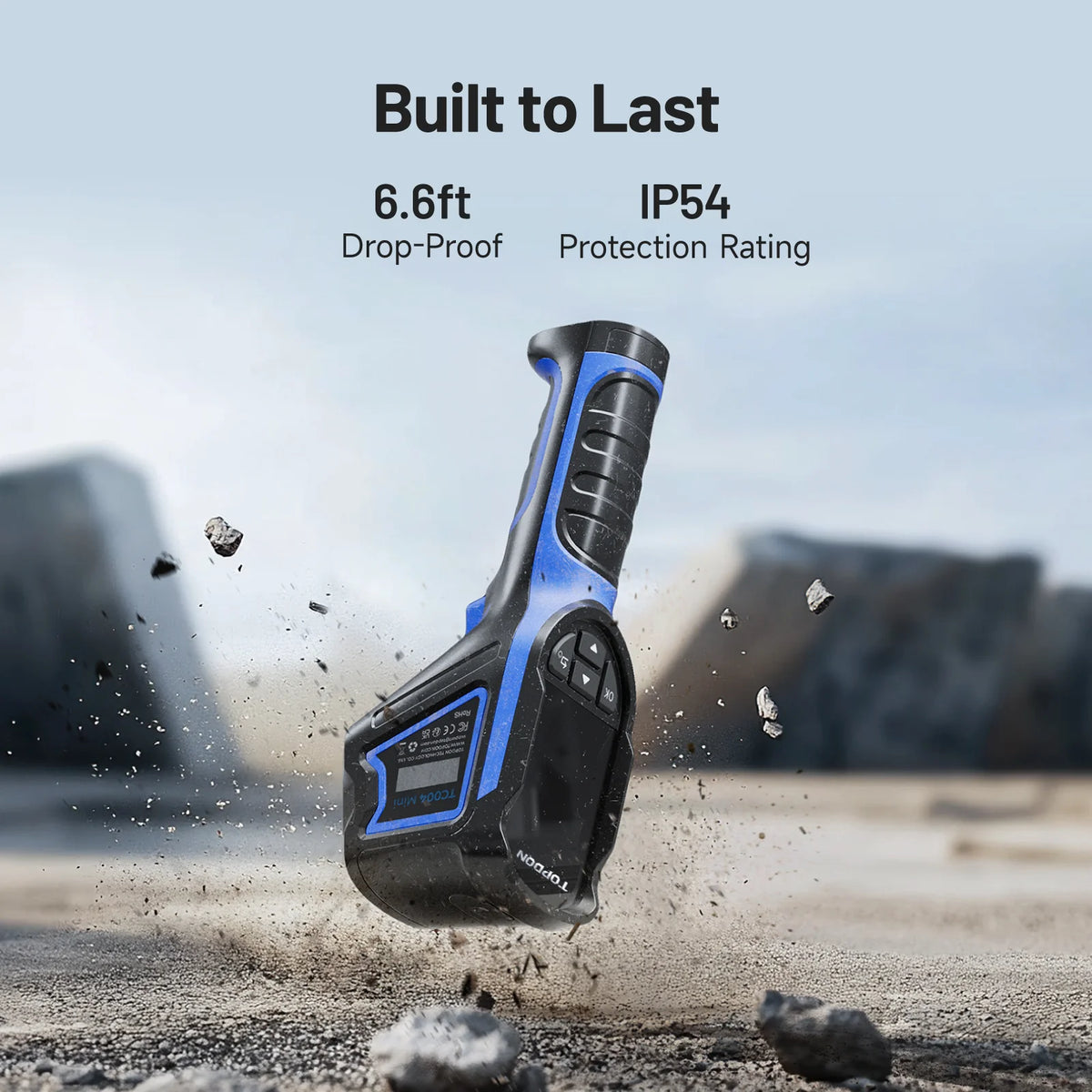

Built to Last

  • Handles 6.6ft (2m) falls with ease and is IP54-rated for tough environments.

Your Compact Go-to Tool

  • Lightweight and ergonomically designed for a comfortable grip—take it anywhere.

Wide Temp Range with Accuracy

  • Covering -4°F to 842°F (-20°C to 450°C) with accuracy up to ±3.6°F (±2°C), it is perfect for detecting mechanical and electrical hotspots in industrial settings. Its high sensitivity of <40mK helps to identify insulation and moisture issues in buildings.

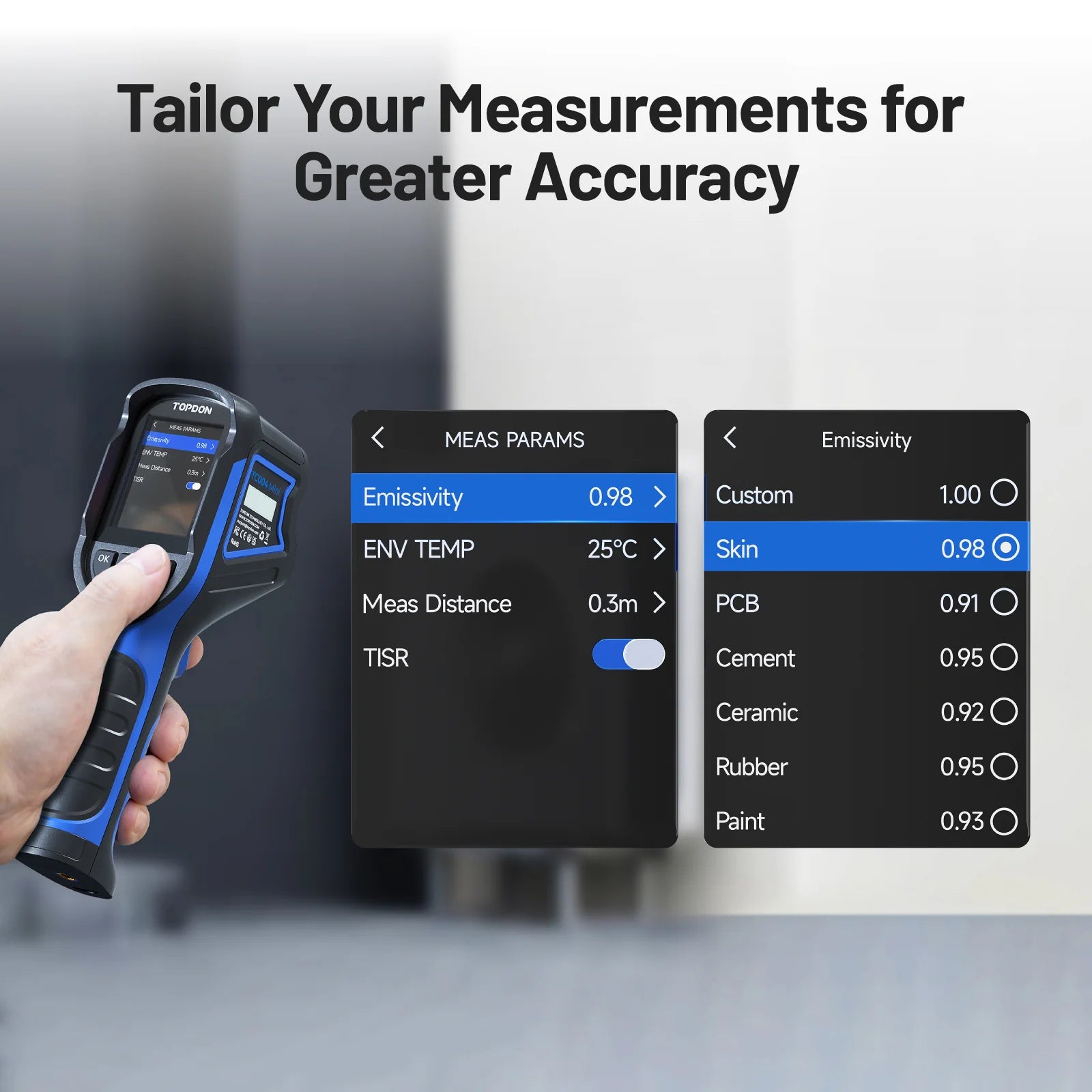

Tailor Your Measurements for Greater Accuracy

  • Easily adjust object emissivity, measurement distance, and environment temperature for more precise thermal results.
  • Note: Emissivity defines how well a target or material emits infrared radiation.

Versatile Color Options for Different Scenarios

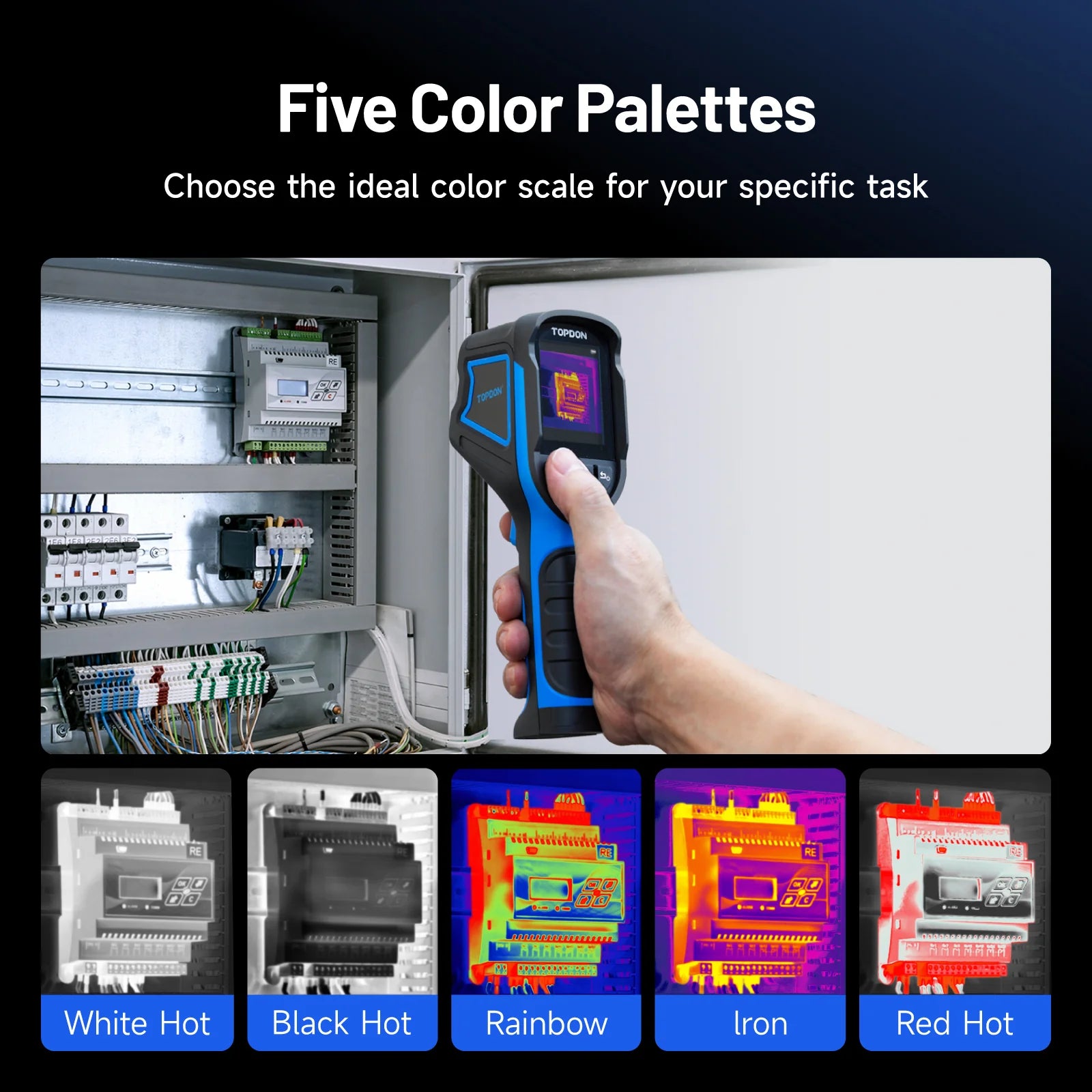

  • Choose from 5 color modes—White Hot, Black Hot, Iron, Rainbow, and Red Hot—to match your specific work needs, ensuring you spot hidden problems with ease.

Gear Up for Winter with Thermal Precision

  • Home Energy Inspection
  • HVAC Maintenance
  • Water Leak Inspection
  • Industrial Inspection
  • Electrical Inspection
  • Automotive Maintenance

Specifications

  • IR Resolution: 128*128, improved to 240*240 by TISR
  • Measurement Range: -4 ~ 842℉ ( -20 ~ 450°C)
  • Refresh Rate: 25Hz
  • Spectral Range: 8 to 14μm
  • FOV: 40° x 30°
  • Focal Length: 3.2 mm
  • NETD: <40 mK
  • Memory: 512MB
  • Battery Life: 15h
  • Battery Type: 2,900mAh built-in battery
  • Protection Level: IP54

Packing List

  • TC004 Mini Thermal Camera
  • Hanging Strap
  • USB-A to USB-C Cable
  • Quick User Guide
